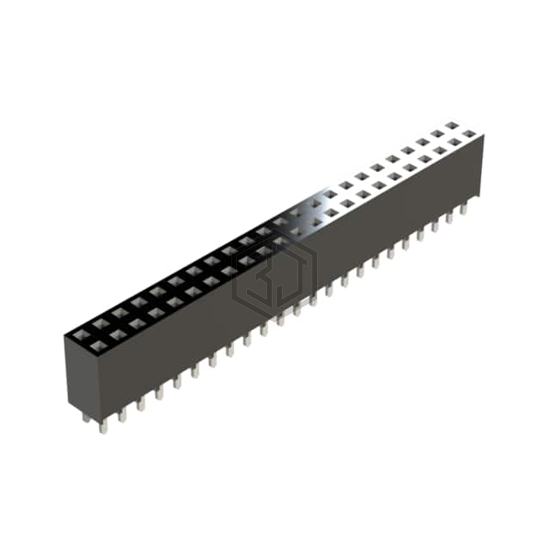

SOCKET WITH A .190 TAIL 23POS
SSHQ-123-D-06-GT-LF is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Major League Electronics. SOCKET WITH A .190 TAIL 23POS. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, current rating (amps) 3A, termination Solder.
In Stock: 5,190
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Socket |
| Contact Type | Forked |
| Style | Board to Board |
| Number of Positions | 46 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Insulation Color | Black |
| Insulation Height | 0.334" (8.48mm) |
| Contact Length - Post | 0.190" (4.83mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
Submit your RFQ for SSHQ-123-D-06-GT-LF and get a quote within 24 hours.
