.050 x .100 Socket

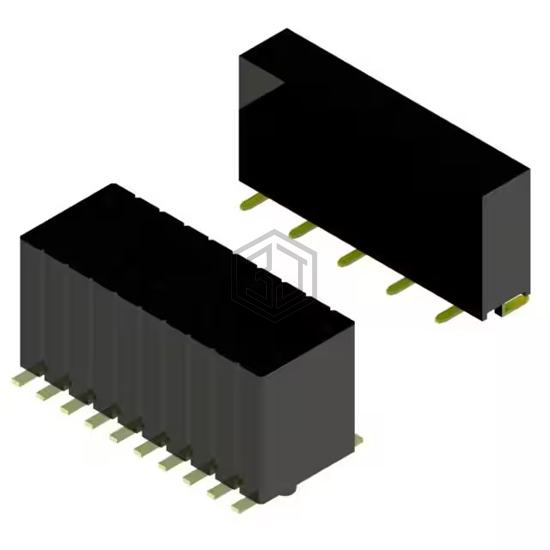

SMSS-620-D-04-H-V-TR-P-LF is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Major League Electronics. .050 x .100 Socket. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, current rating (amps) 1A, termination Solder.
In Stock: 3,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Insulation Color | Black |
| Insulation Height | 0.235" (5.97mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Pick and Place |
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
Submit your RFQ for SMSS-620-D-04-H-V-TR-P-LF and get a quote within 24 hours.
