E-SERIES, CV, PHASE-CUT, LISTED,

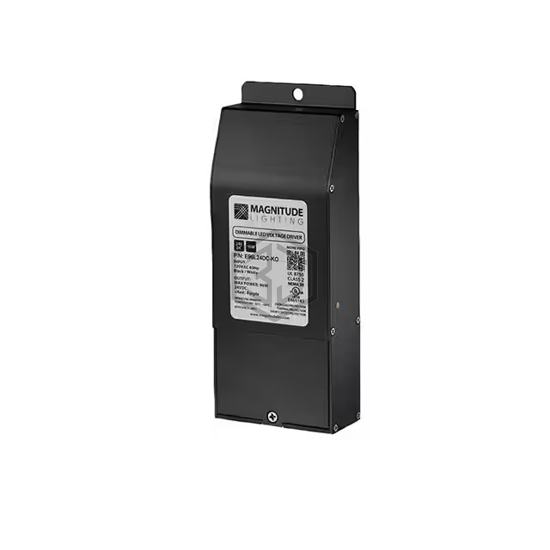

E60L12DC-KO is a LED Drivers manufactured by Magnitude Lighting. E-SERIES, CV, PHASE-CUT, LISTED,. Key specifications: operating temperature -30°C ~ 65°C, voltage - output 12V, current - output (max) 5A, size / dimension 6.77" L x 2.67" W x 1.30" H (172.0mm x 67.8mm x 33.0mm).
In Stock: 250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Voltage |
| Topology | Buck |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 100VAC |
| Voltage - Input (Max) | 130VAC |
| Voltage - Output | 12V |
| Current - Output (Max) | 5A |
| Power (Watts) | 60 W |
| Voltage - Isolation | - |
| Dimming | MLV, TRIAC |
| Features | OCP, OVP, SS |
| Ratings | NEMA 3R |
| Operating Temperature | -30°C ~ 65°C |
| Efficiency | 90% |
| Termination Style | Wire Leads |
| Size / Dimension | 6.77" L x 2.67" W x 1.30" H (172.0mm x 67.8mm x 33.0mm) |
| Approval Agency | UL, FCC, CSA |
| Standard Number | 8750, 15B, CSA C22.2 No. 250 13-14 |
Submit your RFQ for E60L12DC-KO and get a quote within 24 hours.
