SOLIDRIVE, CV, NON-DIM, LISTED,

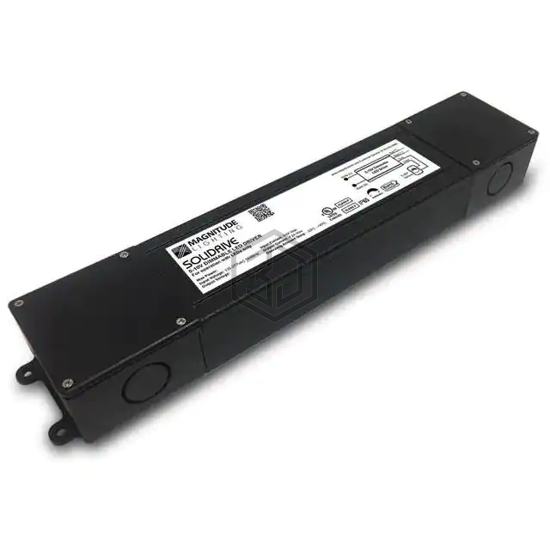

CVN60L24DC is a LED Drivers manufactured by Magnitude Lighting. SOLIDRIVE, CV, NON-DIM, LISTED,. Key specifications: operating temperature -40°C ~ 85°C, voltage - output 12V, current - output (max) 4.2A, size / dimension 12.10" L x 2.36" W x 1.40" H (307.34mm x 59.94mm x 35.6mm).
In Stock: 250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 120VAC |
| Voltage - Input (Max) | 277VAC |
| Voltage - Output | 12V |
| Current - Output (Max) | 4.2A |
| Power (Watts) | 50 W |
| Voltage - Isolation | - |
| Dimming | Non-Dimmable |
| Features | OCP, OTP, OVP, SS |
| Ratings | IP66 |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 84% |
| Termination Style | Wire Leads |
| Size / Dimension | 12.10" L x 2.36" W x 1.40" H (307.34mm x 59.94mm x 35.6mm) |
| Approval Agency | FCC, UL |
| Standard Number | 8750, 2043, CSA C22.2 NO. 250.13-14 |
Submit your RFQ for CVN60L24DC and get a quote within 24 hours.
