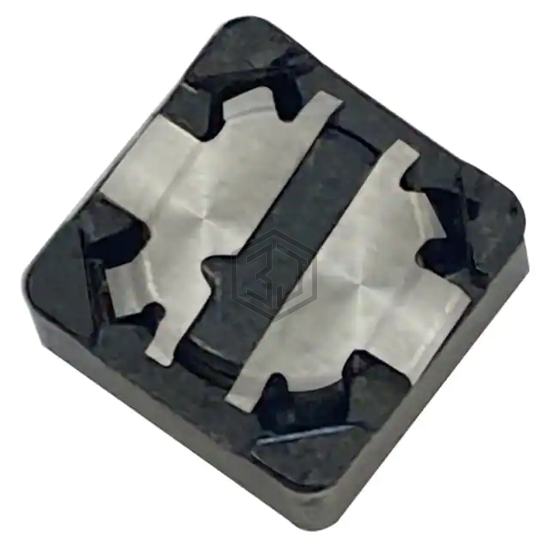

FIXED IND 82UH 0.61A 0.43 OHM
MSCDRI-74-820M-RU is a Fixed Inductors manufactured by Mag Layers. FIXED IND 82UH 0.61A 0.43 OHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 610 mA.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 82 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 610 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 430mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
Submit your RFQ for MSCDRI-74-820M-RU and get a quote within 24 hours.
