FIXED IND 10UH 9A 25.5 MOHM SMD

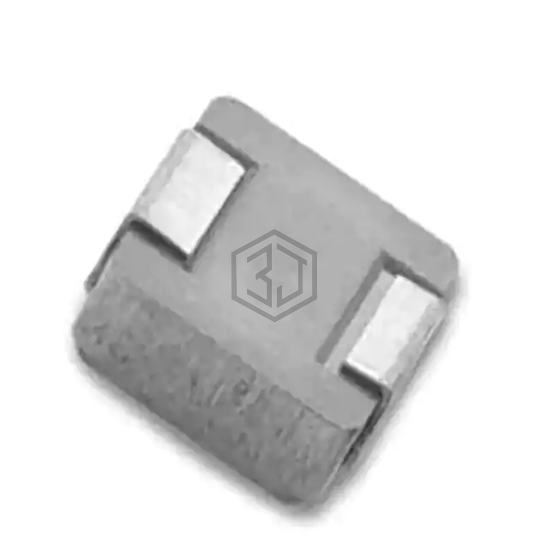

MMD-12EZ-100M-V1-RU is a Fixed Inductors manufactured by Mag Layers. FIXED IND 10UH 9A 25.5 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 9 A.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9 A |
| Current - Saturation (Isat) | 16A |
| Shielding | Shielded |
| DC Resistance (DCR) | 25.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.520" L x 0.508" W (13.20mm x 12.90mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for MMD-12EZ-100M-V1-RU and get a quote within 24 hours.
