CMC 10A 2LN 500 OHM SMD

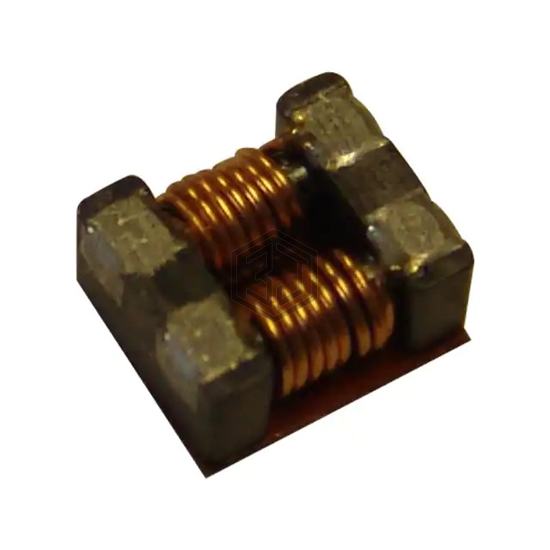

MCM-1513M-701-RU is a Common Mode Chokes manufactured by Mag Layers. CMC 10A 2LN 500 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage rating - dc 80V, package / case Horizontal, 4 PC Pad.
In Stock: 403
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 500 Ohms @ 100 MHz |
| Inductance @ Frequency | - |
| Current Rating (Max) | 10A |
| DC Resistance (DCR) (Max) | 7mOhm |
| Voltage Rating - DC | 80V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.591" L x 0.512" W (15.00mm x 13.00mm) |
| Height (Max) | 0.236" (6.00mm) |
| Package / Case | Horizontal, 4 PC Pad |
Submit your RFQ for MCM-1513M-701-RU and get a quote within 24 hours.
