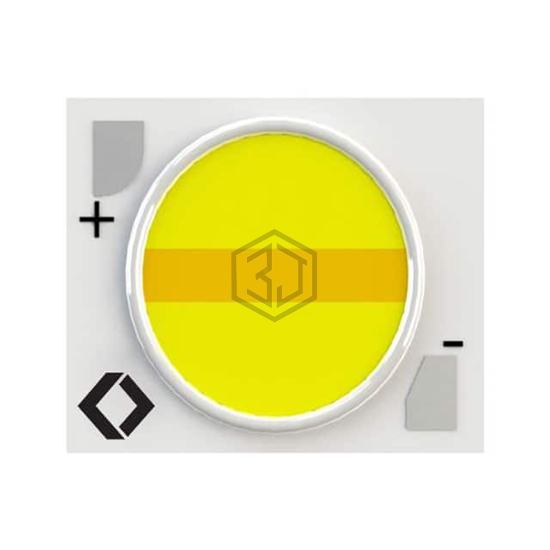

17MM WARM DIM COB, 30-18K 90CRI
COB-WD-17-2420-30K-18K-90 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Luxtech, LLC. 17MM WARM DIM COB, 30-18K 90CRI. Key specifications: voltage - forward (vf) (typ) 34.5V, color White, Warm, current - max 1.05A, size / dimension 23.90mm L x 19.90mm W.
In Stock: 7,095
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 1800K ~ 3000K |
| Wavelength | - |
| Configuration | Rectangle |
| Luminous Flux @ Current/Temperature | 3600lm |
| Current - Test | 950mA |
| Temperature - Test | 105°C |
| Voltage - Forward (Vf) (Typ) | 34.5V |
| Lumens/Watt @ Current - Test | 110 lm/W |
| Current - Max | 1.05A |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | - |
| Features | - |
| Size / Dimension | 23.90mm L x 19.90mm W |
| Height | 1.60mm |
| Light Emitting Surface (LES) | 17.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for COB-WD-17-2420-30K-18K-90 and get a quote within 24 hours.
