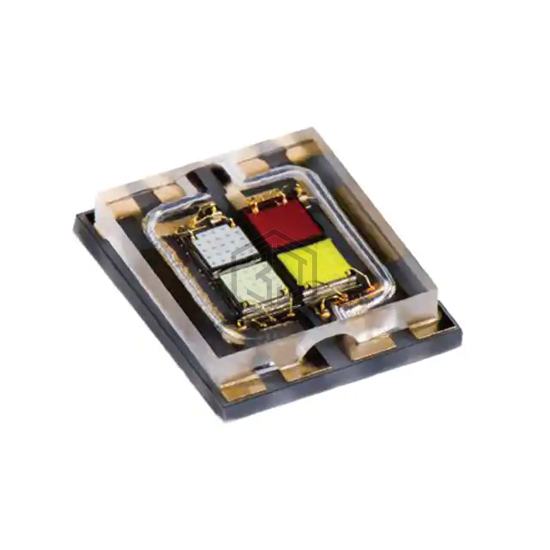

LED SBM40 RGBW 623/525/454 8SMD
SBM-40-RGBW-SC41-QD100 is a LED Lighting - Color manufactured by Luminus Devices Inc.. LED SBM40 RGBW 623/525/454 8SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.95V Red, 3.45V Green, 3.45V Blue, 3.45V White, package / case 2318 (5847 Metric), color Red, Green, Blue, White (RGBW).
In Stock: 2,380
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue, White (RGBW) |
| Wavelength | 623nm Red, 525nm Green, 454nm Blue |
| Current - Test | 1A |
| Voltage - Forward (Vf) (Typ) | 2.95V Red, 3.45V Green, 3.45V Blue, 3.45V White |
| Lumens/Watt @ Current - Test | 39 lm/W Red, 72 lm/W Green, 80 lm/W White |
| Current - Max | 2A Red, 2A Green, 2A Blue, 2A White |
| Luminous Flux @ Current/Temperature | 115lm Red, 248lm Green, 1200mW Blue, 278lm White |
| Temperature - Test | 25°C |
| Viewing Angle | 17° Red, 32° Green, 21° Blue |
| Mounting Type | Surface Mount |
| Package / Case | 2318 (5847 Metric) |
| Supplier Device Package | 8-SMD |
| Size / Dimension | 0.226" L x 0.184" W (5.75mm x 4.68mm) |
| Height - Seated (Max) | 0.051" (1.30mm) |
Submit your RFQ for SBM-40-RGBW-SC41-QD100 and get a quote within 24 hours.
