RECTANGULAR, 230VAC, 6W, 180MA,

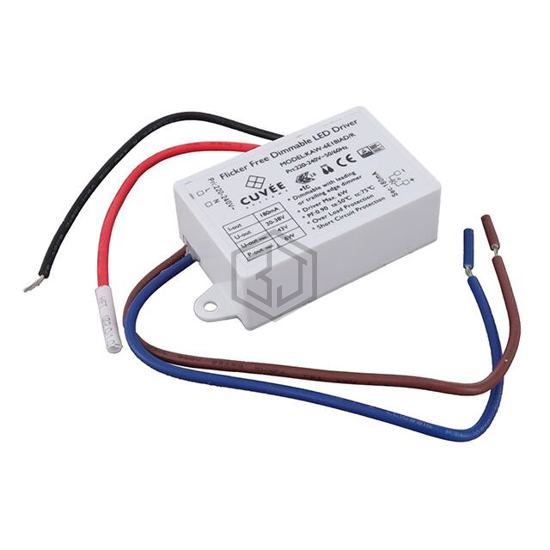

KAW-6E18IAD/R is a LED Drivers manufactured by Luminus Devices Inc.. RECTANGULAR, 230VAC, 6W, 180MA,. Key specifications: operating temperature -10°C ~ 50°C, voltage - output 30 ~ 38V, current - output (max) 180mA, size / dimension 2.48" L x 1.26" W x 0.67" H (63.0mm x 32.0mm x 17.0mm).
In Stock: 60
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 220VAC |
| Voltage - Input (Max) | 240VAC |
| Voltage - Output | 30 ~ 38V |
| Current - Output (Max) | 180mA |
| Power (Watts) | 6 W |
| Voltage - Isolation | - |
| Dimming | - |
| Features | OVP, SCP |
| Ratings | IP65 |
| Operating Temperature | -10°C ~ 50°C |
| Efficiency | 75% |
| Termination Style | Wire Leads |
| Size / Dimension | 2.48" L x 1.26" W x 0.67" H (63.0mm x 32.0mm x 17.0mm) |
| Approval Agency | CE, ENEC, TUV |
| Standard Number | - |
Submit your RFQ for KAW-6E18IAD/R and get a quote within 24 hours.
