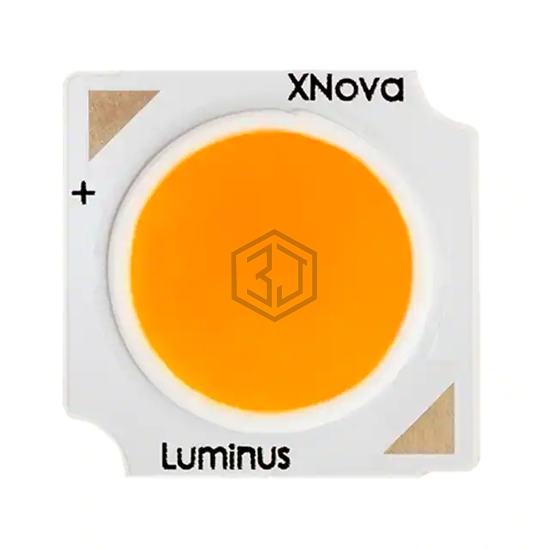

LED COB 5000K SQUARE
CXM-9-50-70-36-AC30-F4-5 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Luminus Devices Inc.. LED COB 5000K SQUARE. Key specifications: voltage - forward (vf) (typ) 34V, color White, Cool, current - max 720mA, size / dimension 13.50mm L x 13.50mm W.
In Stock: 92
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 5000K 5-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 2025lm (Typ) |
| Current - Test | 360mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 34V |
| Lumens/Watt @ Current - Test | 166 lm/W |
| Current - Max | 720mA |
| CRI (Color Rendering Index) | 70 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 13.50mm L x 13.50mm W |
| Height | 1.37mm |
| Light Emitting Surface (LES) | 9.60mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXM-9-50-70-36-AC30-F4-5 and get a quote within 24 hours.
