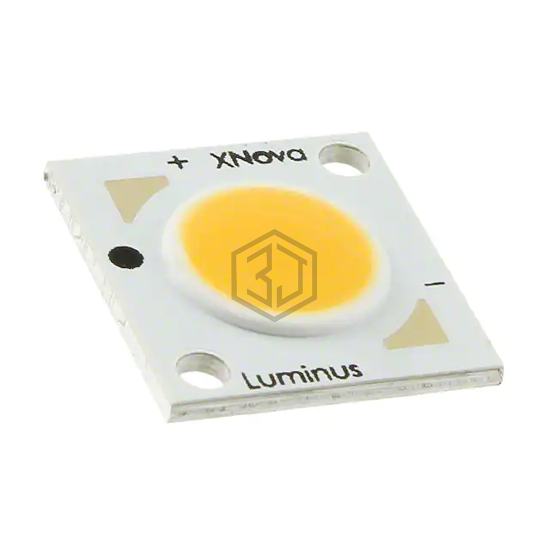

LED COB CXM6 COOL WHITE RECT
CXM-6-50-80-9-AA00-F2-3 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Luminus Devices Inc.. LED COB CXM6 COOL WHITE RECT. Key specifications: voltage - forward (vf) (typ) 8.8V, color White, Cool, current - max 960mA, size / dimension 12.00mm L x 13.00mm W.
In Stock: 8,608
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Rectangle |
| Luminous Flux @ Current/Temperature | 500lm (485lm ~ 515lm) |
| Current - Test | 480mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 8.8V |
| Lumens/Watt @ Current - Test | 114 lm/W |
| Current - Max | 960mA |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 12.00mm L x 13.00mm W |
| Height | 1.37mm |
| Light Emitting Surface (LES) | 6.30mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXM-6-50-80-9-AA00-F2-3 and get a quote within 24 hours.
