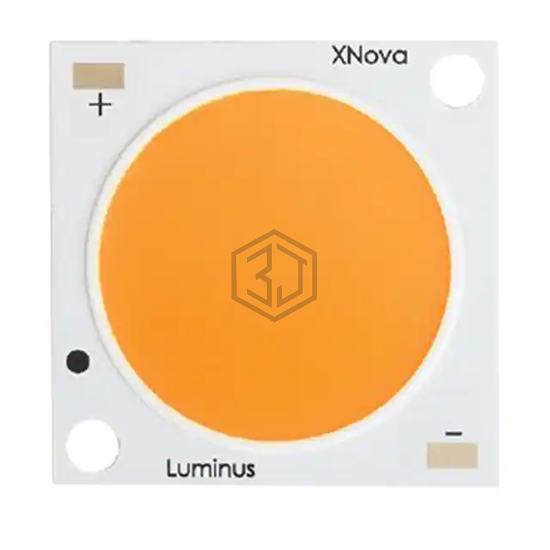

LED COB 5000K SQUARE
CXM-22-50-70-54-AC30-F4-3 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Luminus Devices Inc.. LED COB 5000K SQUARE. Key specifications: voltage - forward (vf) (typ) 51V, color White, Cool, current - max 2.4A, size / dimension 28.00mm L x 28.00mm W.
In Stock: 71
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 9425lm (Typ) |
| Current - Test | 1.1A |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 51V |
| Lumens/Watt @ Current - Test | 168 lm/W |
| Current - Max | 2.4A |
| CRI (Color Rendering Index) | 70 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 28.00mm L x 28.00mm W |
| Height | 1.37mm |
| Light Emitting Surface (LES) | 22.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXM-22-50-70-54-AC30-F4-3 and get a quote within 24 hours.
