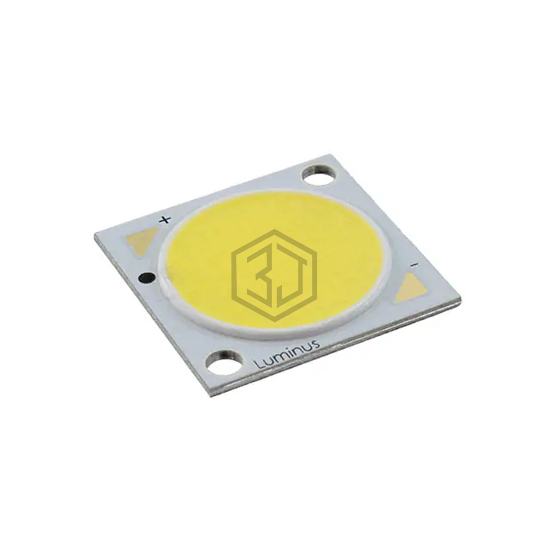

LED COB CXM14 COOL WHITE SQUARE
CXM-14-65-80-36-AA30-F4-5 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Luminus Devices Inc.. LED COB CXM14 COOL WHITE SQUARE. Key specifications: voltage - forward (vf) (typ) 34V, color White, Cool, current - max 1.45A, size / dimension 18.50mm L x 18.50mm W.
In Stock: 941
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 6500K 5-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 3770lm (Typ) |
| Current - Test | 720mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 34V |
| Lumens/Watt @ Current - Test | 154 lm/W |
| Current - Max | 1.45A |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 18.50mm L x 18.50mm W |
| Height | 1.37mm |
| Light Emitting Surface (LES) | 14.30mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXM-14-65-80-36-AA30-F4-5 and get a quote within 24 hours.
