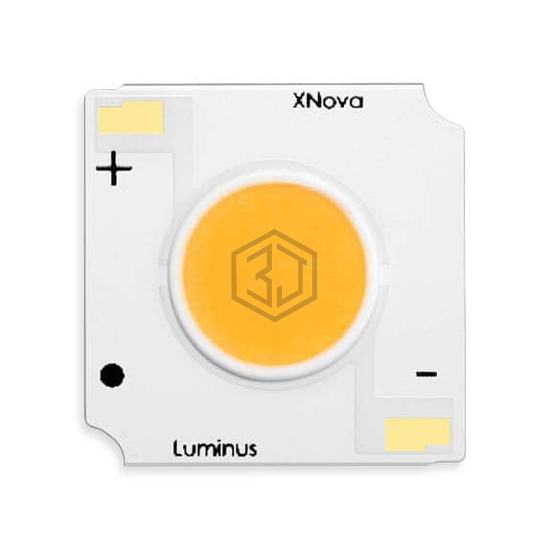

LED COB CHM9 WARM WHITE SQUARE
CHM-9-35-90-36-AC00-F2-3 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Luminus Devices Inc.. LED COB CHM9 WARM WHITE SQUARE. Key specifications: voltage - forward (vf) (typ) 35V, color White, Warm, current - max 720mA, size / dimension 13.50mm L x 13.50mm W.
In Stock: 1,698
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 1220lm (Typ) |
| Current - Test | 360mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 35V |
| Lumens/Watt @ Current - Test | 97 lm/W |
| Current - Max | 720mA |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 13.50mm L x 13.50mm W |
| Height | 1.37mm |
| Light Emitting Surface (LES) | 9.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for CHM-9-35-90-36-AC00-F2-3 and get a quote within 24 hours.
