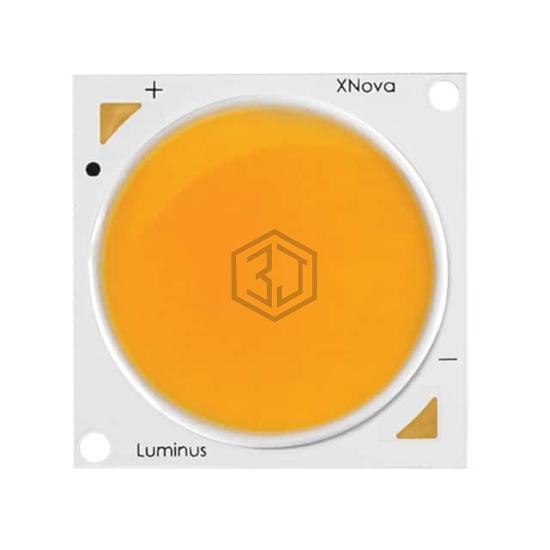

LED COB CHM27 NEUTRAL WHT SQUARE
CHM-27-40-70-36-AA00-F2-3 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Luminus Devices Inc.. LED COB CHM27 NEUTRAL WHT SQUARE. Key specifications: voltage - forward (vf) (typ) 35V, color White, Neutral, current - max 5.4A, size / dimension 31.50mm L x 31.50mm W.
In Stock: 7,446
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Neutral |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 11535lm (Typ) |
| Current - Test | 2.7A |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 35V |
| Lumens/Watt @ Current - Test | 122 lm/W |
| Current - Max | 5.4A |
| CRI (Color Rendering Index) | 70 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 31.50mm L x 31.50mm W |
| Height | 1.37mm |
| Light Emitting Surface (LES) | 26.50mm Dia |
| Lens Type | Flat |
Submit your RFQ for CHM-27-40-70-36-AA00-F2-3 and get a quote within 24 hours.
