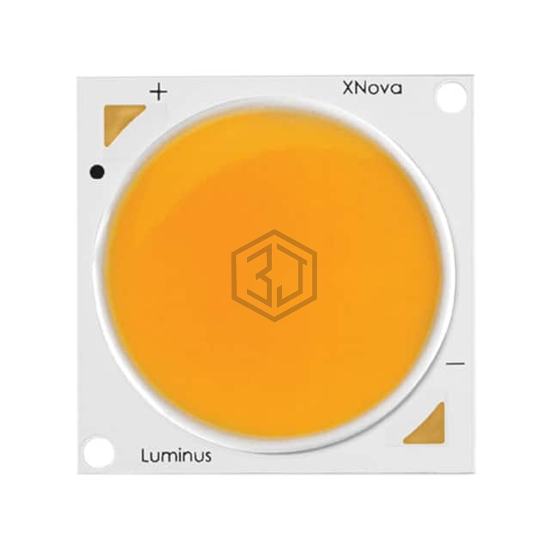

LED COB CHM22 COOL WHITE SQUARE
CHM-22-65-70-36-AC00-F2-3 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Luminus Devices Inc.. LED COB CHM22 COOL WHITE SQUARE. Key specifications: voltage - forward (vf) (typ) 35V, color White, Cool, current - max 3.84A, size / dimension 28.00mm L x 28.00mm W.
In Stock: 2,078
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 6500K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 8560lm (Typ) |
| Current - Test | 1.92A |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 35V |
| Lumens/Watt @ Current - Test | 127 lm/W |
| Current - Max | 3.84A |
| CRI (Color Rendering Index) | 70 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 28.00mm L x 28.00mm W |
| Height | 1.37mm |
| Light Emitting Surface (LES) | 22.00mm Dia |
| Lens Type | Flat |
