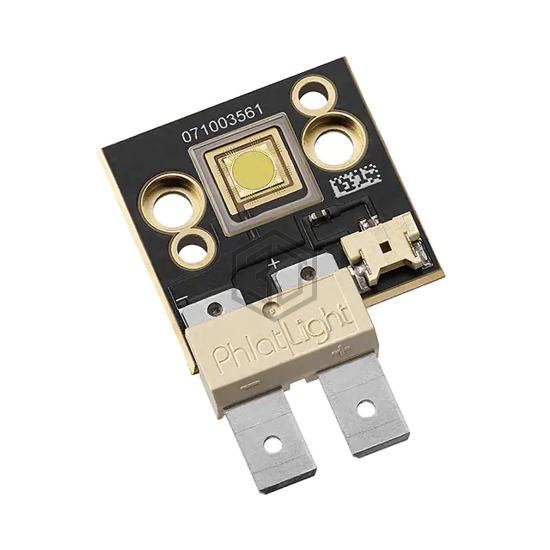

BIG CHIP LED COOL WHITE
CBT-140-WCS-L16-UA123 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Luminus Devices Inc.. BIG CHIP LED COOL WHITE. Key specifications: voltage - forward (vf) (typ) 3.6V, color White, Cool, current - max 28A, size / dimension 28.00mm L x 42.00mm W.
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | LED Module |
| Color | White, Cool |
| CCT (K) | 7040K ~ 8500K |
| Wavelength | - |
| Configuration | Rectangle |
| Luminous Flux @ Current/Temperature | 3818lm (3680lm ~ 3955lm) |
| Current - Test | 21A |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Lumens/Watt @ Current - Test | 50 lm/W |
| Current - Max | 28A |
| CRI (Color Rendering Index) | 75 (Typ) |
| Viewing Angle | - |
| Features | With Connector |
| Size / Dimension | 28.00mm L x 42.00mm W |
| Height | 5.70mm |
| Light Emitting Surface (LES) | 4.25mm Dia |
| Lens Type | Flat |
Submit your RFQ for CBT-140-WCS-L16-UA123 and get a quote within 24 hours.
