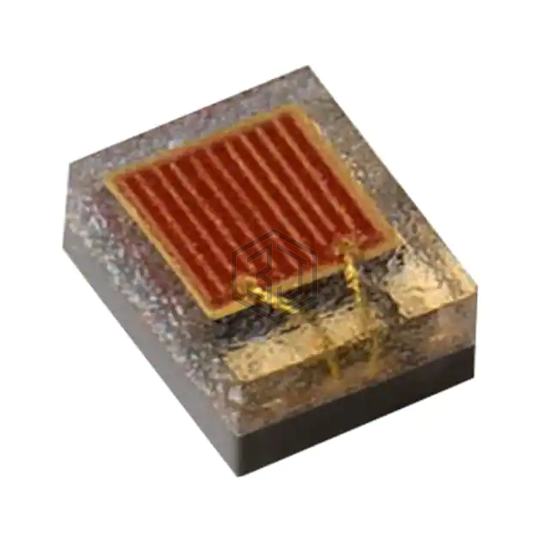

LXZ1-PH01 - Lumileds - LED Lighting - Color

LXZ1-PH01

Lumileds

LED LUXEON Z RED-ORG 615NM SMD

LXZ1-PH01 is a LED Lighting - Color manufactured by Lumileds. LED LUXEON Z RED-ORG 615NM SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V, package / case 0705 (1713 Metric), color Red-Orange.

In Stock: 2,000

Product Attributes

AttributeValue
Product StatusActive
ColorRed-Orange
Wavelength615nm (610nm ~ 620nm)
Current - Test500mA
Voltage - Forward (Vf) (Typ)2.2V
Lumens/Watt @ Current - Test58 lm/W
Current - Max700mA
Luminous Flux @ Current/Temperature64lm (56lm ~ 72lm)
Temperature - Test25°C
Viewing Angle145°
Mounting TypeSurface Mount
Package / Case0705 (1713 Metric)
Supplier Device PackageSMD
Size / Dimension0.067" L x 0.051" W (1.70mm x 1.30mm)
Height - Seated (Max)0.026" (0.66mm)

Frequently Asked Questions

LXZ1-PH01 is a LED Lighting - Color manufactured by Lumileds. LED LUXEON Z RED-ORG 615NM SMD

The mounting type of LXZ1-PH01 is Surface Mount.

The supply voltage of LXZ1-PH01 is 2.2V.

The package type of LXZ1-PH01 is 0705 (1713 Metric).

The wavelength of LXZ1-PH01 is 615nm (610nm ~ 620nm).
