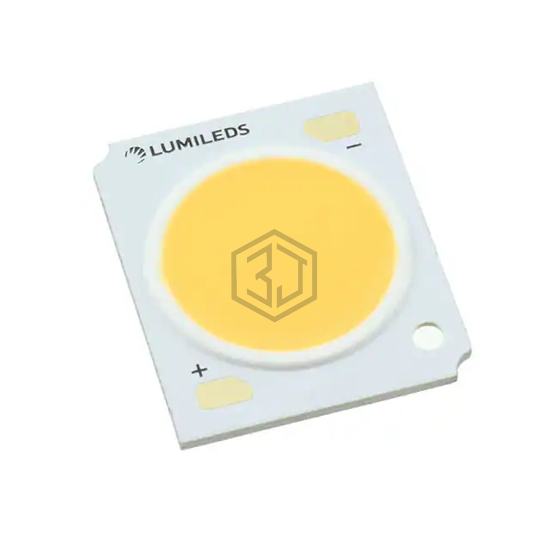

LED COB LUXEON WHITE 3000K SQ
L2C5-30901204E13C0 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Lumileds. LED COB LUXEON WHITE 3000K SQ. Key specifications: voltage - forward (vf) (typ) 35.3V, color White, Warm, current - test 450mA, size / dimension 20.00mm L x 24.00mm W.
In Stock: 66
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Rectangle |
| Luminous Flux @ Current/Temperature | 1579lm (Typ) |
| Current - Test | 450mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 35.3V |
| Lumens/Watt @ Current - Test | 99 lm/W |
| Current - Max | - |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 20.00mm L x 24.00mm W |
| Height | 1.50mm |
| Light Emitting Surface (LES) | 13.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for L2C5-30901204E13C0 and get a quote within 24 hours.
