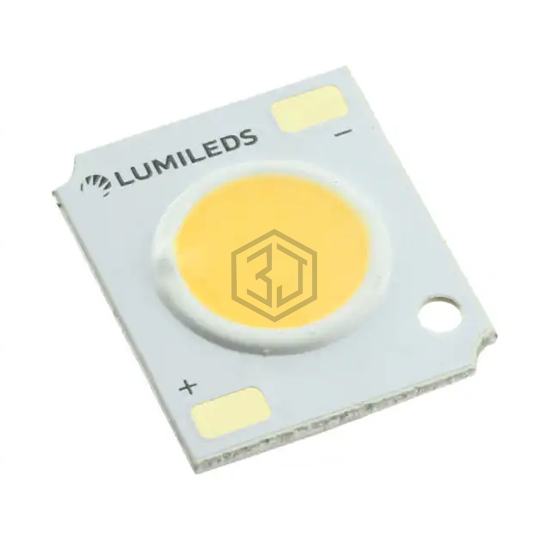

LED COB CORE RANGE COOL WHITE
L2C2-57801202E0600 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Lumileds. LED COB CORE RANGE COOL WHITE. Key specifications: voltage - forward (vf) (typ) 34.5V, color White, Cool, current - max 400mA, size / dimension 12.00mm L x 15.00mm W.
In Stock: 548
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 5700K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Rectangle |
| Luminous Flux @ Current/Temperature | 920lm (Typ) |
| Current - Test | 200mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 34.5V |
| Lumens/Watt @ Current - Test | 133 lm/W |
| Current - Max | 400mA |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 12.00mm L x 15.00mm W |
| Height | 1.50mm |
| Light Emitting Surface (LES) | 6.50mm Dia |
| Lens Type | Flat |
Submit your RFQ for L2C2-57801202E0600 and get a quote within 24 hours.
