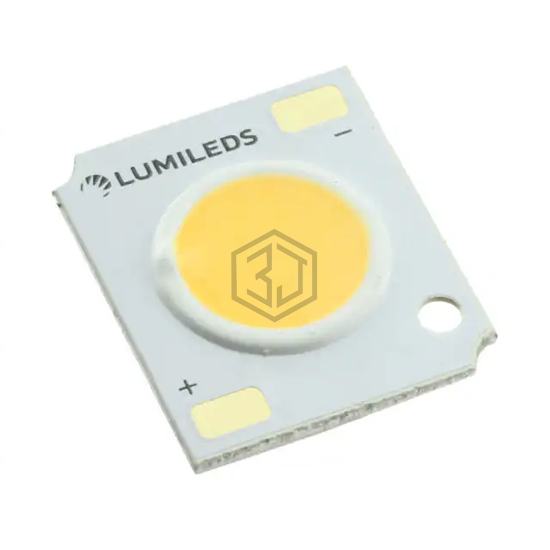

LED COB 5700K COOL WH 70CRI SMD
L2C2-57701208E1500 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Lumileds. LED COB 5700K COOL WH 70CRI SMD. Key specifications: voltage - forward (vf) (typ) 35V, color White, Cool, current - max 1.8A, size / dimension 20.00mm L x 24.00mm W.
In Stock: 93
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 5700K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Rectangle |
| Luminous Flux @ Current/Temperature | 4577lm (Typ) |
| Current - Test | 900mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 35V |
| Lumens/Watt @ Current - Test | 145 lm/W |
| Current - Max | 1.8A |
| CRI (Color Rendering Index) | 70 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 20.00mm L x 24.00mm W |
| Height | 1.50mm |
| Light Emitting Surface (LES) | 15.00mm Dia |
| Lens Type | Flat |
