LED COB 5700K COOL WH 70CRI SMD

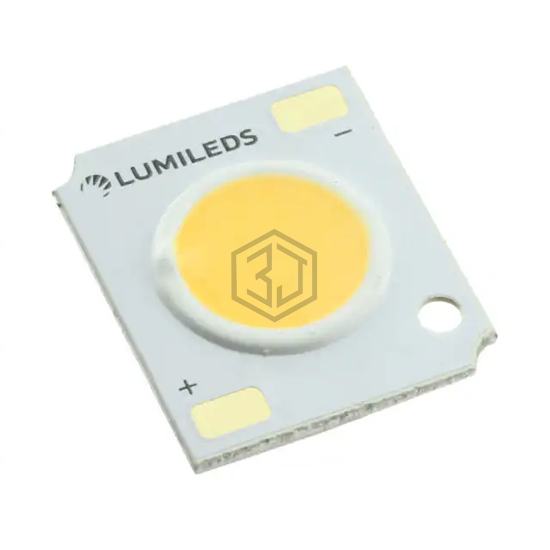

L2C2-57701202E0900 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Lumileds. LED COB 5700K COOL WH 70CRI SMD. Key specifications: voltage - forward (vf) (typ) 34.5V, color White, Cool, current - max 400mA, size / dimension 16.00mm L x 19.00mm W.
In Stock: 67
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 5700K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Rectangle |
| Luminous Flux @ Current/Temperature | 1045lm (Typ) |
| Current - Test | 200mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 34.5V |
| Lumens/Watt @ Current - Test | 151 lm/W |
| Current - Max | 400mA |
| CRI (Color Rendering Index) | 70 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 16.00mm L x 19.00mm W |
| Height | 1.50mm |
| Light Emitting Surface (LES) | 9.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for L2C2-57701202E0900 and get a quote within 24 hours.
