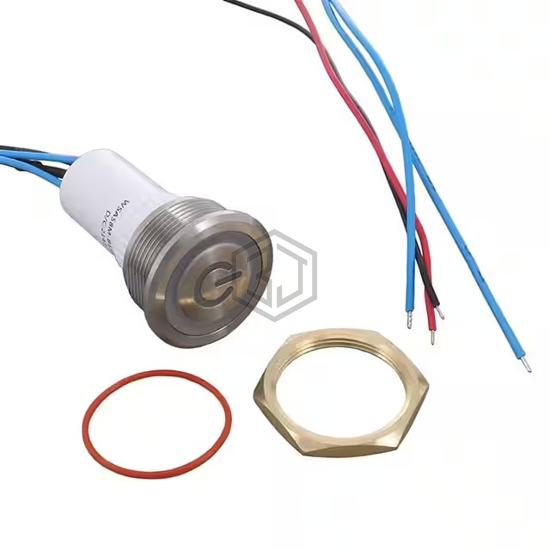

WSA58M-B13W24 - Lumex Opto/Components Inc. - Pushbutton Switches

WSA58M-B13W24

Lumex Opto/Components Inc.

PBS 22MM SPDT 5A 28V UL61058 MTN

WSA58M-B13W24 is a Pushbutton Switches manufactured by Lumex Opto/Components Inc.. PBS 22MM SPDT 5A 28V UL61058 MTN. Key specifications: mounting type Panel Mount, Front, operating temperature -40°C ~ 85°C, voltage rating - dc 28 V, current rating (amps) 5A (DC).

In Stock: 105

Product Attributes

AttributeValue
Product StatusActive
Mounting TypePanel Mount, Front
TypeStandard, Illuminated
CircuitSPDT
Switch FunctionOn-On
Current Rating (Amps)5A (DC)
Voltage Rating - AC-
Voltage Rating - DC28 V
Actuator TypeRound, Button, Flush
Actuator Marking-
Color - Actuator/CapSilver
Illumination Type, ColorLED, White
Illumination Voltage (Nominal)24 VDC
Termination StyleWire Leads
Ingress ProtectionIP67 - Dust Tight, Waterproof
Features-
Panel Cutout DimensionsCircular - 22.15mm Dia
Operating Temperature-40°C ~ 85°C

Frequently Asked Questions

WSA58M-B13W24 is a Pushbutton Switches manufactured by Lumex Opto/Components Inc.. PBS 22MM SPDT 5A 28V UL61058 MTN

The mounting type of WSA58M-B13W24 is Panel Mount, Front.

The operating temperature range of WSA58M-B13W24 is -40°C ~ 85°C.

The supply voltage of WSA58M-B13W24 is 28 V.

The circuit configuration of WSA58M-B13W24 is SPDT.
