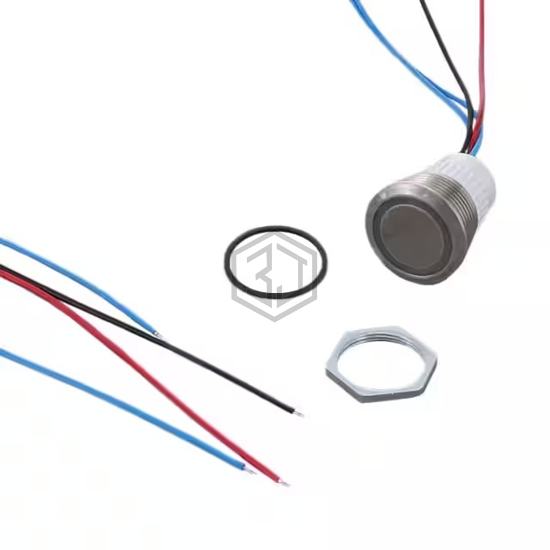

PBS 19MM SPST 0.1A 48V MOM METAL
W48M-A12B is a Pushbutton Switches manufactured by Lumex Opto/Components Inc.. PBS 19MM SPST 0.1A 48V MOM METAL. Key specifications: mounting type Panel Mount, Front, operating temperature -40°C ~ 85°C, voltage rating - dc 12 V, current rating (amps) 250mA (DC).
In Stock: 98
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Standard, Illuminated |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 250mA (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 12 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | - |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 3.1 VDC |
| Termination Style | Wire Leads |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Panel Cutout Dimensions | Circular - 19.15mm Dia |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for W48M-A12B and get a quote within 24 hours.
