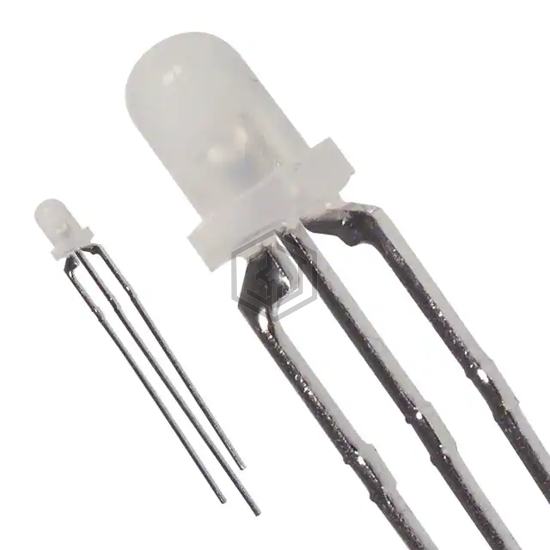

SSL-LX3059SISUGW - Lumex Opto/Components Inc. - LED Indication - Discrete

SSL-LX3059SISUGW

Lumex Opto/Components Inc.

LED GREEN/RED DIFFUSED T-1 T/H

SSL-LX3059SISUGW is a LED Indication - Discrete manufactured by Lumex Opto/Components Inc.. LED GREEN/RED DIFFUSED T-1 T/H. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2.2V Green, 2V Red, package / case Radial, color Green, Red.

In Stock: 7,770

Product Attributes

AttributeValue
Product StatusActive
ColorGreen, Red
ConfigurationCommon Cathode
Lens ColorWhite
Lens TransparencyDiffused
Millicandela Rating90mcd Green, 240mcd Red
Lens StyleRound with Domed Top
Lens Size3mm, T-1
Voltage - Forward (Vf) (Typ)2.2V Green, 2V Red
Current - Test20mA Green, 20mA Red
Viewing Angle60°
Mounting TypeThrough Hole
Wavelength - Dominant-
Wavelength - Peak574nm Green, 636nm Red
Features-
Package / CaseRadial
Supplier Device PackageT-1 (3mm)
Size / Dimension-
Height (Max)7.03mm

Frequently Asked Questions

SSL-LX3059SISUGW is a LED Indication - Discrete manufactured by Lumex Opto/Components Inc.. LED GREEN/RED DIFFUSED T-1 T/H

The mounting type of SSL-LX3059SISUGW is Through Hole.

The supply voltage of SSL-LX3059SISUGW is 2.2V Green, 2V Red.

The package type of SSL-LX3059SISUGW is Radial.

The wavelength of SSL-LX3059SISUGW is 574nm Green, 636nm Red.
