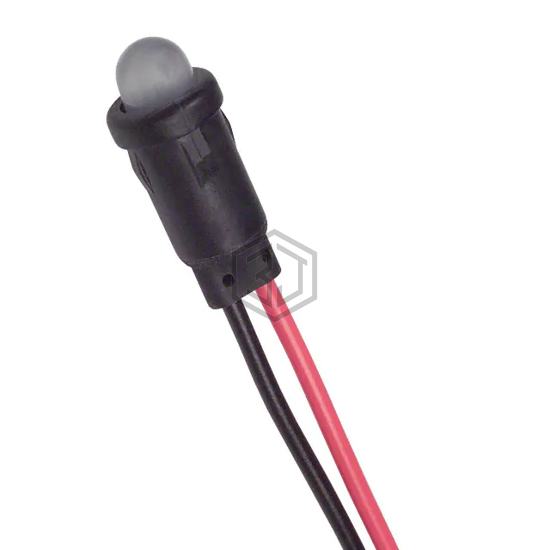

LED 5MM RED/GRN DIFF 6"LDS PNLMT
SSI-LXH600HGW-150 is a Panel Indicators, Pilot Lights manufactured by Lumex Opto/Components Inc.. LED 5MM RED/GRN DIFF 6"LDS PNLMT. Key specifications: voltage 2.2V Green, 2V Red, current 25mA Green, 25mA Red, termination style Wire Leads - 6" (152.40mm), ratings Vf (Typ), If (Max).
In Stock: 4,479
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | LED |
| Lamp Color | Green, Red |
| Lens Color | White |
| Lens Transparency | Diffused |
| Ratings | Vf (Typ), If (Max) |
| Voltage | 2.2V Green, 2V Red |
| Current | 25mA Green, 25mA Red |
| Panel Cutout Shape | Round |
| Panel Cutout Dimensions | 0.25" (6.35mm) |
| Lens Size | 5mm, T-1 3/4 |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 25mcd Green, 6mcd Red |
| Wavelength - Peak | 565nm Green, 700nm Red |
| Viewing Angle | 60° |
| Termination Style | Wire Leads - 6" (152.40mm) |
| Ingress Protection | - |
| Features | - |
