LED GRN/RED CLR SMD R/A

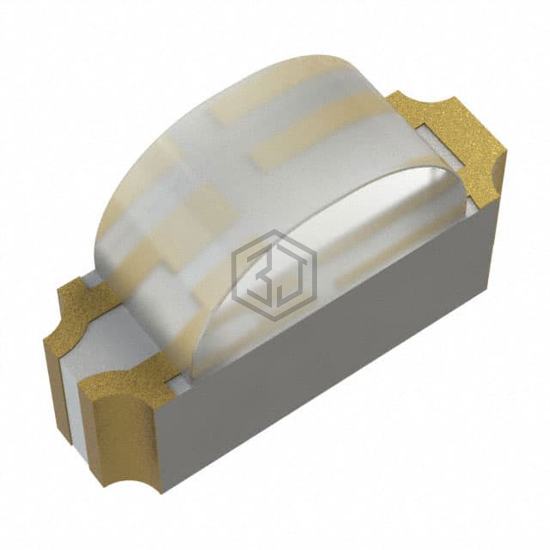

SML-LXR851SISGC-TR is a LED Indication - Discrete manufactured by Lumex Opto/Components Inc.. LED GRN/RED CLR SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 2.1V Green, 2V Red, package / case 2-SMD, No Lead, color Green, Red.
In Stock: 22,550
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 20mcd Green, 50mcd Red |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | - |
| Wavelength - Peak | 565nm Green, 636nm Red |
| Features | - |
| Package / Case | 2-SMD, No Lead |
| Supplier Device Package | SMD |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Height (Max) | 1.00mm |
