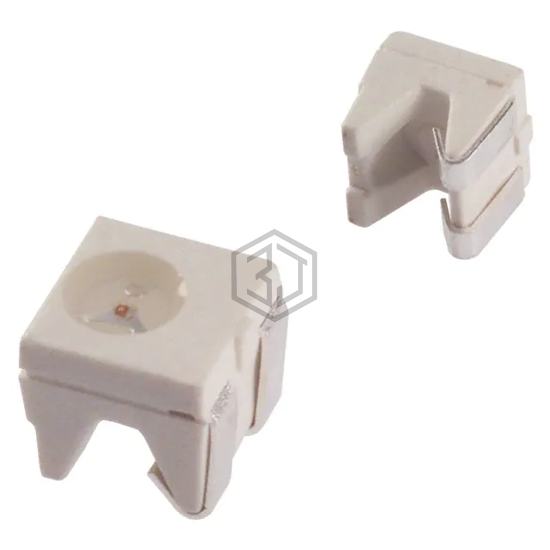

LED GRN/RED CLEAR BOOMERANG SMD
SML-LXR44SRSUGC-TR is a LED Indication - Discrete manufactured by Lumex Opto/Components Inc.. LED GRN/RED CLEAR BOOMERANG SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Green, 1.85V Red, package / case 2-SMD, Boomerang, color Green, Red.
In Stock: 4,756
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Bidirectional |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 90mcd Green, 200mcd Red |
| Lens Style | Round with Domed Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.85V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 574nm Green, 660nm Red |
| Features | - |
| Package / Case | 2-SMD, Boomerang |
| Supplier Device Package | Boomerang |
| Size / Dimension | 4.00mm L x 3.60mm W |
| Height (Max) | 4.00mm |
Submit your RFQ for SML-LXR44SRSUGC-TR and get a quote within 24 hours.
