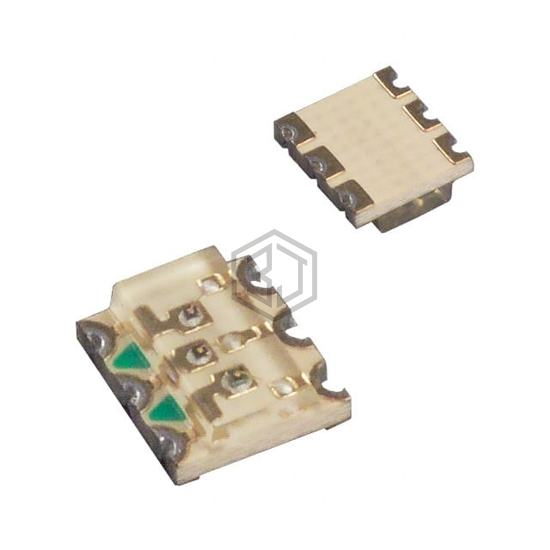

LED RGB CLEAR 3632 SMD
SML-LX3632SISUGSBC is a LED Indication - Discrete manufactured by Lumex Opto/Components Inc.. LED RGB CLEAR 3632 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 2.2V Green, 3.5V Blue, package / case 6-SMD, No Lead, color Red, Green, Blue (RGB).
In Stock: 12,045
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 75mcd Red, 60mcd Green, 50mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.90mm x 3.60mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.2V Green, 3.5V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 636nm Red, 574nm Green, 430nm Blue |
| Features | - |
| Package / Case | 6-SMD, No Lead |
| Supplier Device Package | 3632 |
| Size / Dimension | 3.60mm L x 3.20mm W |
| Height (Max) | 1.10mm |
Submit your RFQ for SML-LX3632SISUGSBC and get a quote within 24 hours.
