LED TITANBRITE COOL WHT 6000K

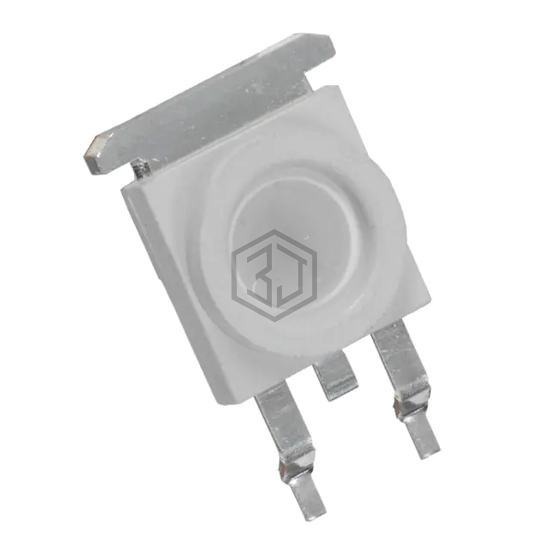

SML-LX1610UWC/A is a LED Lighting - White manufactured by Lumex Opto/Components Inc.. LED TITANBRITE COOL WHT 6000K. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.5V, package / case TO-252-3, DPak (2 Leads + Tab), SC-63, color White, Cool.
In Stock: 419
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | White, Cool |
| CCT (K) | 6000K (3000K ~ 9000K) |
| Flux @ 85°C, Current - Test | - |
| Flux @ 25°C, Current - Test | 30lm (Typ) |
| Current - Test | 350mA |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Lumens/Watt @ Current - Test | 24 lm/W |
| CRI (Color Rendering Index) | - |
| Current - Max | 350mA |
| Viewing Angle | 110° |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | - |
| Size / Dimension | 0.417" L x 0.394" W (10.60mm x 10.00mm) |
| Height - Seated (Max) | 0.130" (3.30mm) |
