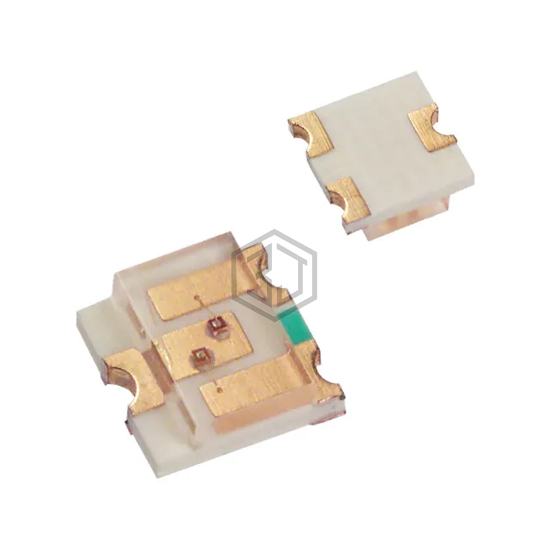

LED GREEN/YELLOW CLEAR SOT23 SMD
SML-LX15YGC-RP-TR is a LED Indication - Discrete manufactured by Lumex Opto/Components Inc.. LED GREEN/YELLOW CLEAR SOT23 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V Green, 2.1V Yellow, package / case TO-236, SC-59, SOT-23-3 variant, 3-SMD, color Green, Yellow.
In Stock: 10,352
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Yellow |
| Configuration | Common Cathode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 10mcd Green, 10mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 3.00mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.1V Yellow |
| Current - Test | 20mA Green, 20mA Yellow |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 565nm Green, 585nm Yellow |
| Features | - |
| Package / Case | TO-236, SC-59, SOT-23-3 variant, 3-SMD |
| Supplier Device Package | SOT-23 |
| Size / Dimension | 3.00mm L x 3.00mm W |
| Height (Max) | 1.00mm |
