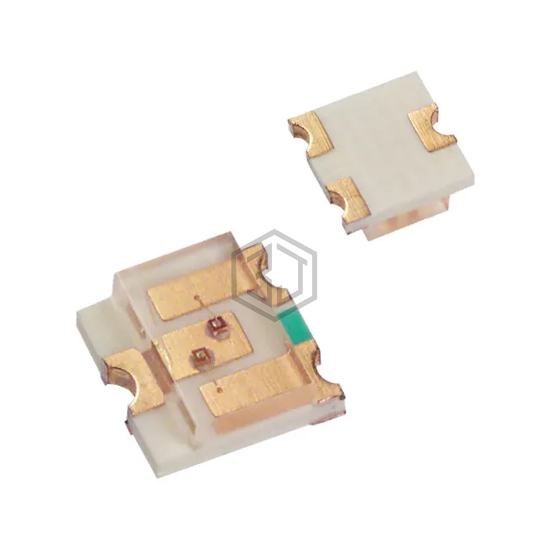

LED BLUE CLEAR SOT23 SMD
SML-LX15USBC-RP-TR is a LED Indication - Discrete manufactured by Lumex Opto/Components Inc.. LED BLUE CLEAR SOT23 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.5V, package / case TO-236, SC-59, SOT-23-3 variant, 3-SMD, color Blue.
In Stock: 1,282
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Blue |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 120mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 3.00mm |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 470nm |
| Features | - |
| Package / Case | TO-236, SC-59, SOT-23-3 variant, 3-SMD |
| Supplier Device Package | SOT-23 |
| Size / Dimension | 3.00mm L x 3.00mm W |
| Height (Max) | 1.00mm |
