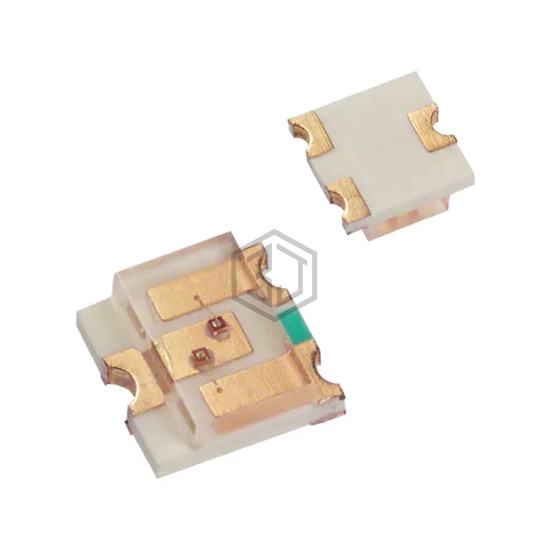

LED GREEN/RED CLEAR SOT23 SMD
SML-LX15IGC-TR is a LED Indication - Discrete manufactured by Lumex Opto/Components Inc.. LED GREEN/RED CLEAR SOT23 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Green, 2V Red, package / case TO-236, SC-59, SOT-23-3 variant, 3-SMD, color Green, Red.
In Stock: 18,289
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 10mcd Green, 10mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 3.00mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 565nm Green, 635nm Red |
| Features | - |
| Package / Case | TO-236, SC-59, SOT-23-3 variant, 3-SMD |
| Supplier Device Package | SOT-23 |
| Size / Dimension | 3.00mm L x 3.00mm W |
| Height (Max) | 1.00mm |
Submit your RFQ for SML-LX15IGC-TR and get a quote within 24 hours.
