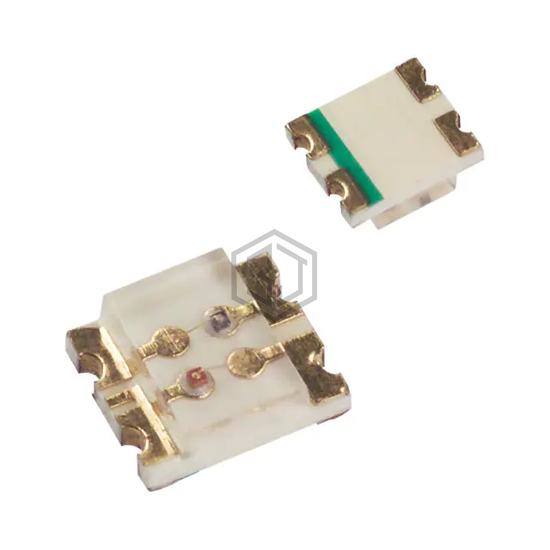

LED GREEN/RED CLEAR 1210 SMD
SML-LX1210SRSGC-TR is a LED Indication - Discrete manufactured by Lumex Opto/Components Inc.. LED GREEN/RED CLEAR 1210 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V Green, 1.7V Red, package / case 1210 (3225 Metric), color Green, Red.
In Stock: 18,077
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 10mcd Green, 15mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 2.70mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 1.7V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 160° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 565nm Green, 660nm Red |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.10mm |
