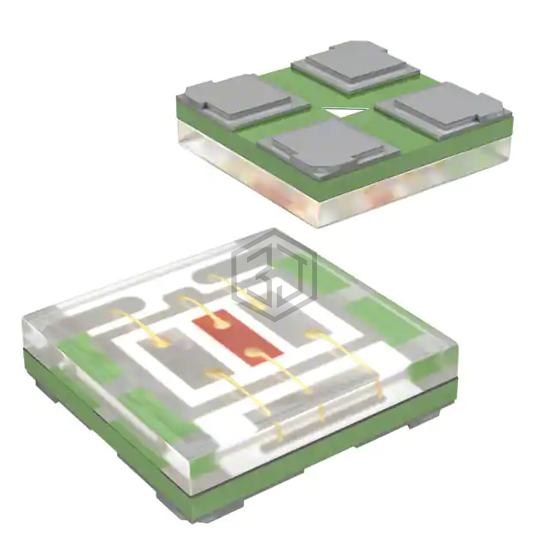

LED RGB CLEAR SMD
SML-LX0404SIUPGUSB is a LED Indication - Discrete manufactured by Lumex Opto/Components Inc.. LED RGB CLEAR SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.95V Red, 2.85V Green, 2.73V Blue, package / case 0404 (1010 Metric), color Red, Green, Blue (RGB).
In Stock: 30,389
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 30mcd Red, 40mcd Green, 20mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | 1.00mm |
| Voltage - Forward (Vf) (Typ) | 1.95V Red, 2.85V Green, 2.73V Blue |
| Current - Test | 2mA Red, 2mA Green, 2mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 632nm Red, 518nm Green, 465nm Blue |
| Features | - |
| Package / Case | 0404 (1010 Metric) |
| Supplier Device Package | SMD |
| Size / Dimension | 1.00mm L x 1.00mm W |
| Height (Max) | 0.30mm |
