LCD MOD 32DIG 16X2 TRANSFLCT WHT

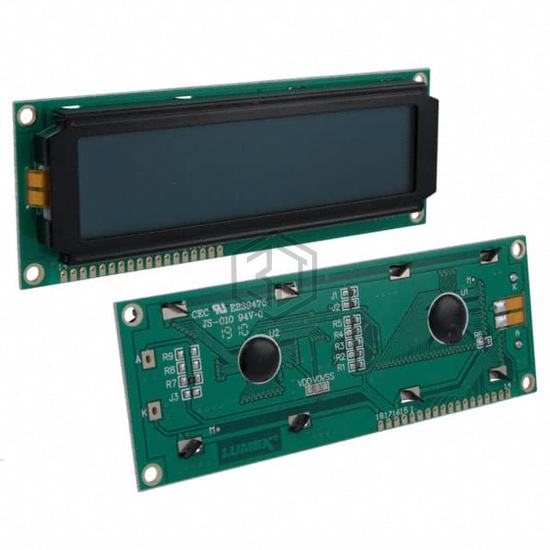

LCR-U01602DSF/DWH is a Display Modules - LCD, OLED Character and Numeric manufactured by Lumex Opto/Components Inc.. LCD MOD 32DIG 16X2 TRANSFLCT WHT. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 4.7V ~ 5.3V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 7,620
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 32 |
| Display Format | 16 x 2 |
| Character Format | 5 x 7 Dots w/Cursor |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 9.66mm H x 4.84mm W |
| Outline L x W x H | 122.00mm x 44.00mm x 10.60mm |
| Viewing Area | 99.00mm L x 24.00mm W |
| Backlight | LED - White |
| Voltage - Supply | 4.7V ~ 5.3V |
| Dot Size | 0.92mm W x 1.10mm H |
| Interface | Parallel |
| Controller Type | - |
| Operating Temperature | -40°C ~ 85°C |
| Text Color | - |
| Background Color | Green |
Submit your RFQ for LCR-U01602DSF/DWH and get a quote within 24 hours.
