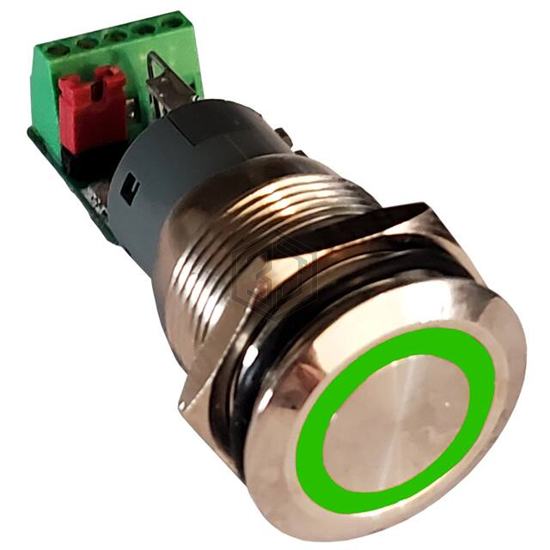

19MM DEBOUNCE PB SW SCRW LED GR
LS-19-S-G is a Pushbutton Switches manufactured by LogiSwitch. 19MM DEBOUNCE PB SW SCRW LED GR. Key specifications: mounting type Panel Mount, Front, operating temperature -40°C ~ 85°C, voltage rating - dc 5 V, current rating (amps) 25mA (DC).
In Stock: 41
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Anti-Vandal, Illuminated |
| Circuit | - |
| Switch Function | - |
| Current Rating (Amps) | 25mA (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 5 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 5 VDC |
| Termination Style | Screw Terminal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Push Button, Debounce Circuit |
| Panel Cutout Dimensions | Circular - 19.20mm Dia |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for LS-19-S-G and get a quote within 24 hours.
