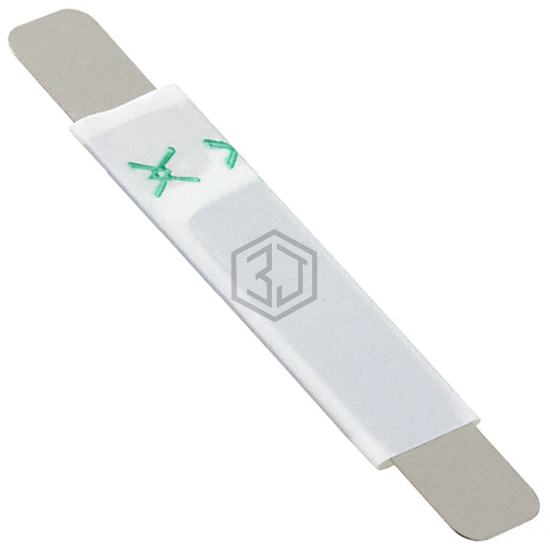

PTC RESET FUSE 16V 2.4A STRAP
VTP240F is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 16V 2.4A STRAP. Key specifications: mounting type User Defined, package / case Strap, current - max 100 A, size / dimension 0.984" L x 0.201" W (25.00mm x 5.10mm).
In Stock: 13,906
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 2.4 A |
| Current - Trip (It) | 5.9 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 14 mOhms |
| Resistance - Post Trip (R1) (Max) | 52 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | - |
| Ratings | - |
| Mounting Type | User Defined |
| Package / Case | Strap |
| Size / Dimension | 0.984" L x 0.201" W (25.00mm x 5.10mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.032" (0.80mm) |
| Lead Spacing | - |
