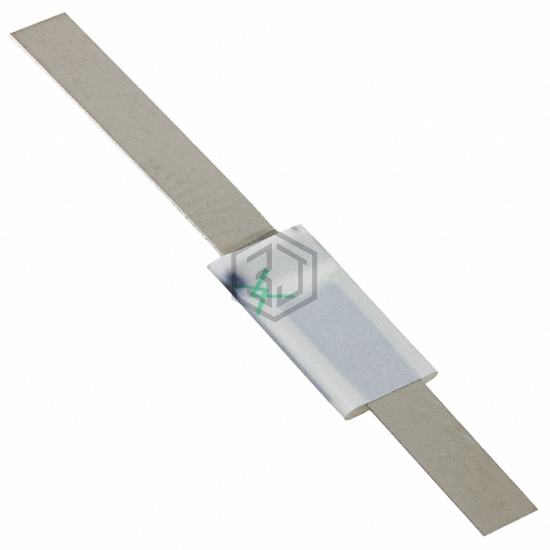

PTC RESET FUSE 16V 2.1A STRAP
VLP210XLF is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 16V 2.1A STRAP. Key specifications: mounting type User Defined, operating temperature -40°C ~ 85°C, package / case Strap, current - max 100 A.
In Stock: 9,657
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 2.1 A |
| Current - Trip (It) | 4.7 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 18 mOhms |
| Resistance - Post Trip (R1) (Max) | 60 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | User Defined |
| Package / Case | Strap |
| Size / Dimension | 0.648" L x 0.280" W (16.45mm x 7.10mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.032" (0.80mm) |
| Lead Spacing | - |
Submit your RFQ for VLP210XLF and get a quote within 24 hours.
