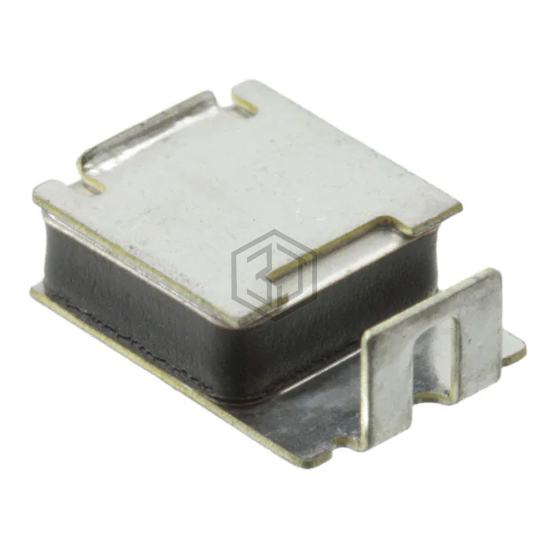

PTC RESET FUSE 60V 130MA 2SMD
TS250-130F-2 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 60V 130MA 2SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 2-SMD, current - max 1 A.
In Stock: 2,950
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V (600V Int) |
| Current - Max | 1 A |
| Current - Hold (Ih) (Max) | 130 mA |
| Current - Trip (It) | 260 mA |
| Time to Trip | 2.5 s |
| Resistance - Initial (Ri) (Min) | 6.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 20 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Size / Dimension | 0.352" L x 0.291" W (8.95mm x 7.40mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.134" (3.40mm) |
| Lead Spacing | - |
