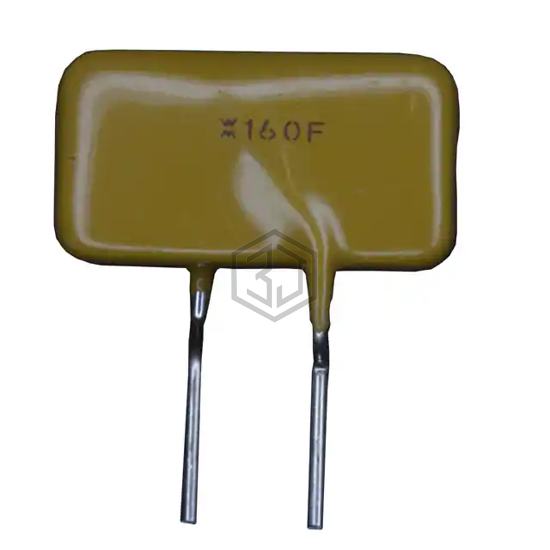

PTC RESET FUSE 60V 400MA RADIAL
TRF600-400 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 60V 400MA RADIAL. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 85°C, package / case Radial, Disc, current - max 60 A.
In Stock: 130
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V (600V Int) |
| Current - Max | 60 A |
| Current - Hold (Ih) (Max) | 400 mA |
| Current - Trip (It) | 1 A |
| Time to Trip | 10 s |
| Resistance - Initial (Ri) (Min) | 950 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.9 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | 0°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.583" L x 0.181" W (14.80mm x 4.60mm) |
| Height - Seated (Max) | 0.516" (13.10mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.200" (5.08mm) |
Submit your RFQ for TRF600-400 and get a quote within 24 hours.
