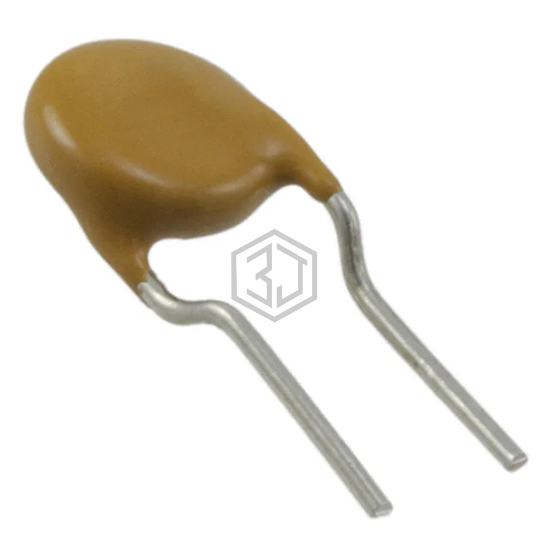

PTC RESET FUSE 100V 184MA RADIAL
TRF250-184 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 100V 184MA RADIAL. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 85°C, package / case Radial, Disc, current - max 10 A.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 100V (250V Int) |
| Current - Max | 10 A |
| Current - Hold (Ih) (Max) | 184 mA |
| Current - Trip (It) | 1 A |
| Time to Trip | 1.3 s |
| Resistance - Initial (Ri) (Min) | 1.2 Ohms |
| Resistance - Post Trip (R1) (Max) | 3.1 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | 0°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.303" Dia x 0.181" T (7.70mm x 4.60mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
Submit your RFQ for TRF250-184 and get a quote within 24 hours.
