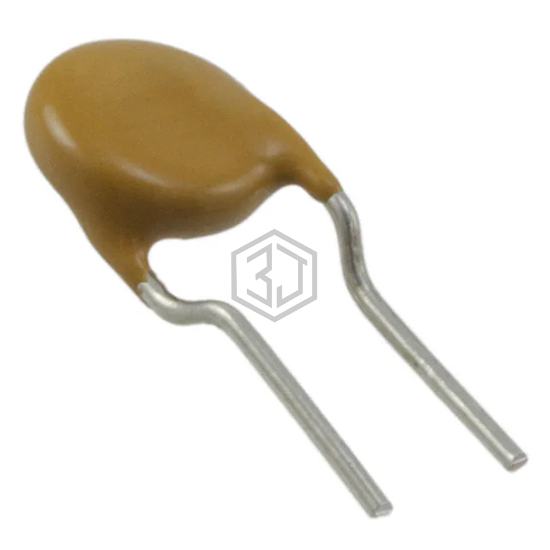

PTC RESET FUSE 100V 183MA RADIAL
TRF250-183 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 100V 183MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 10 A.
In Stock: 37,861
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 100V (250V Int) |
| Current - Max | 10 A |
| Current - Hold (Ih) (Max) | 183 mA |
| Current - Trip (It) | 685 mA |
| Time to Trip | 1.8 s |
| Resistance - Initial (Ri) (Min) | 800 mOhms |
| Resistance - Post Trip (R1) (Max) | 3.4 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.295" Dia x 0.161" T (7.50mm x 4.10mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
Submit your RFQ for TRF250-183 and get a quote within 24 hours.
