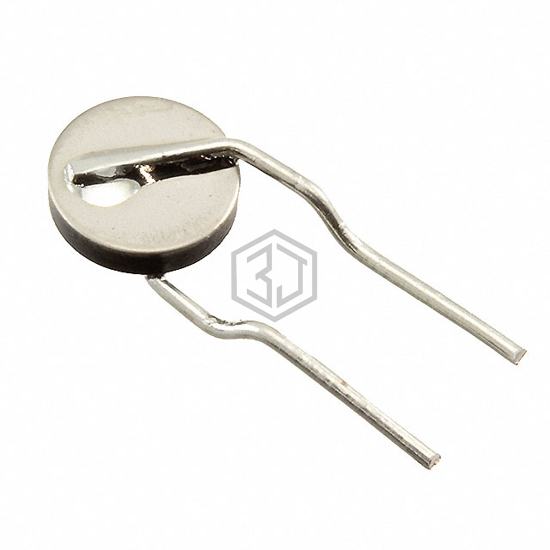

PTC RESET FUSE 60V 55MA RADIAL
TRF250-055UT is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 60V 55MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 3 A.
In Stock: 506
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V (250V Int) |
| Current - Max | 3 A |
| Current - Hold (Ih) (Max) | 55 mA |
| Current - Trip (It) | 170 mA |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 15 Ohms |
| Resistance - Post Trip (R1) (Max) | 35 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.189" Dia x 0.150" T (4.80mm x 3.80mm) |
| Height - Seated (Max) | 0.366" (9.30mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.200" (5.08mm) |
Submit your RFQ for TRF250-055UT and get a quote within 24 hours.
