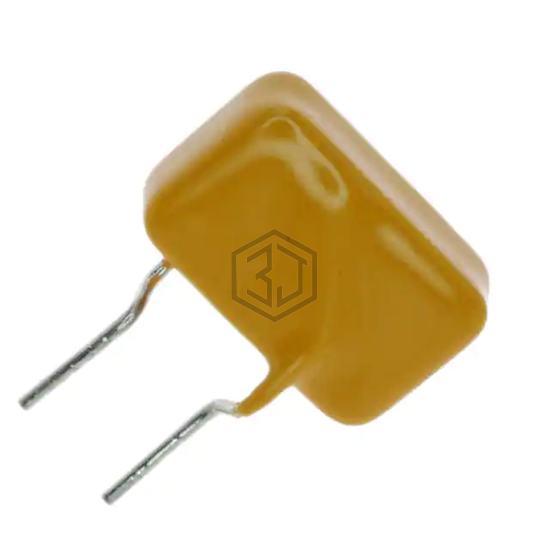

PTC RESET FUSE 250V 150MA RADIAL
TR600-150F-EX is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 250V 150MA RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 40 A.
In Stock: 490
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 250V (600V Int) |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 150 mA |
| Current - Trip (It) | 300 mA |
| Time to Trip | 8 s |
| Resistance - Initial (Ri) (Min) | 6 Ohms |
| Resistance - Post Trip (R1) (Max) | 22 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.532" L x 0.236" W (13.50mm x 6.00mm) |
| Height - Seated (Max) | 0.496" (12.60mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
Submit your RFQ for TR600-150F-EX and get a quote within 24 hours.
