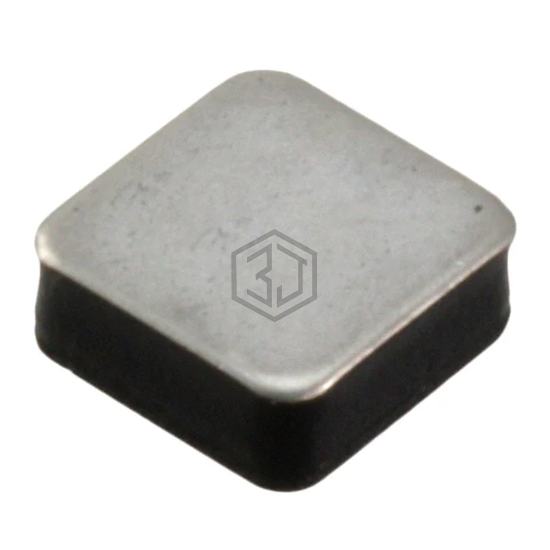

PTC RESET FUSE 60V 90MA SMD
TCF250-100T-B-0.5 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 60V 90MA SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard SMD, current - max 3 A.
In Stock: 1,976
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V (250V Int) |
| Current - Max | 3 A |
| Current - Hold (Ih) (Max) | 90 mA |
| Current - Trip (It) | 150 mA |
| Time to Trip | 200 ms |
| Resistance - Initial (Ri) (Min) | 14 Ohms |
| Resistance - Post Trip (R1) (Max) | 24 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
| Size / Dimension | 0.187" L x 0.187" W (4.75mm x 4.75mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.091" (2.30mm) |
| Lead Spacing | - |
Submit your RFQ for TCF250-100T-B-0.5 and get a quote within 24 hours.
