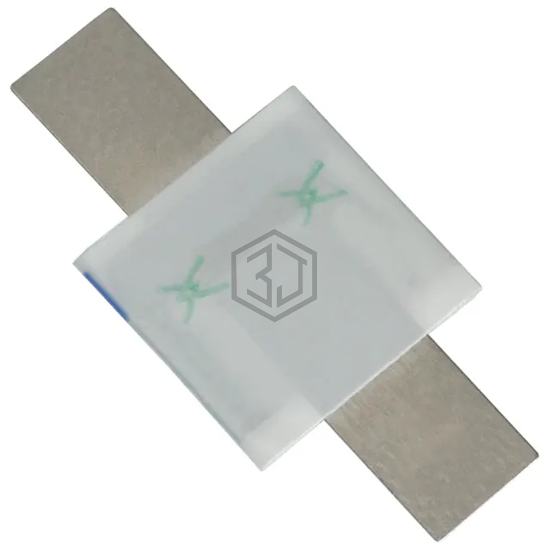

PTC RESET FUSE 30V 3.5A STRAP
SRP350F is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 30V 3.5A STRAP. Key specifications: mounting type User Defined, operating temperature -40°C ~ 85°C, package / case Strap, current - max 100 A.
In Stock: 106,831
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 3.5 A |
| Current - Trip (It) | 6.3 A |
| Time to Trip | 3 s |
| Resistance - Initial (Ri) (Min) | 17 mOhms |
| Resistance - Post Trip (R1) (Max) | 50 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | User Defined |
| Package / Case | Strap |
| Size / Dimension | 1.185" L x 0.522" W (30.10mm x 13.25mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.043" (1.10mm) |
| Lead Spacing | - |
Submit your RFQ for SRP350F and get a quote within 24 hours.
