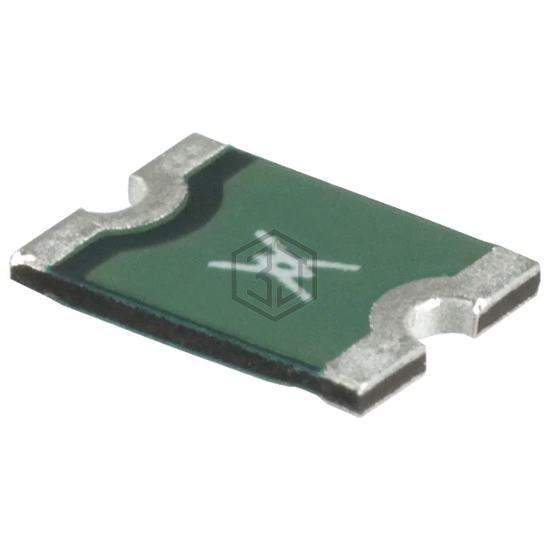

PTC RESET FUSE 18V 3.1A 2920
SMDC310F/18-02 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 18V 3.1A 2920. Key specifications: mounting type Surface Mount, package / case 2920 (7351 Metric), Concave, current - max 50 A, size / dimension 0.295" L x 0.201" W (7.50mm x 5.10mm).
In Stock: 3,546
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 18V |
| Current - Max | 50 A |
| Current - Hold (Ih) (Max) | 3.1 A |
| Current - Trip (It) | 6 A |
| Time to Trip | 25 s |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | - |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.295" L x 0.201" W (7.50mm x 5.10mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.067" (1.70mm) |
| Lead Spacing | - |
Submit your RFQ for SMDC310F/18-02 and get a quote within 24 hours.
