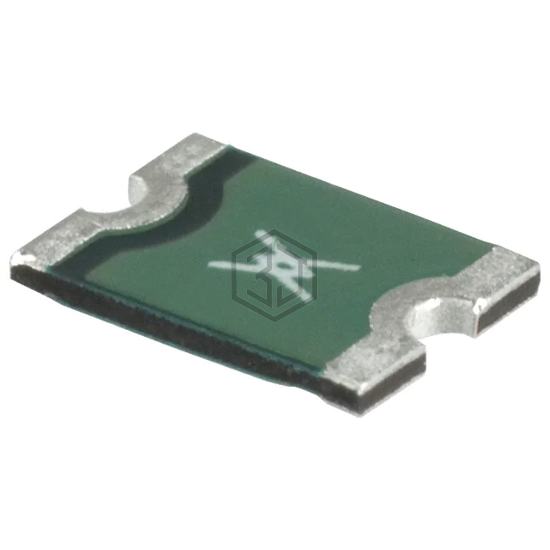

PTC RESET FUSE 24V 3A 2920
SMDC300F/24-2 is a PTC Resettable Fuses manufactured by Littelfuse Inc.. PTC RESET FUSE 24V 3A 2920. Key specifications: mounting type Surface Mount, package / case 2920 (7351 Metric), Concave, current - max 40 A, size / dimension 0.295" L x 0.201" W (7.50mm x 5.10mm).
In Stock: 485
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 24V |
| Current - Max | 40 A |
| Current - Hold (Ih) (Max) | 3 A |
| Current - Trip (It) | 6 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | - |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.295" L x 0.201" W (7.50mm x 5.10mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.043" (1.10mm) |
| Lead Spacing | - |
Submit your RFQ for SMDC300F/24-2 and get a quote within 24 hours.
